Silicone Fiberglass Sleeving (Outer Silicone and Inner Fiberglass)

JDD-MBQGJ is made of the non-alkali fiberglass and coated by silicone with the process of thermal and vulcanization that possesses good properties of dielectric high temperature resistance and cold resistance. It also provides abrasion and flame resistance with high flexibility.

Application:

It is commonly used for insulation and protection of household electrical appliances, electro-heat devices, special illuminations etc where high working temperature and high voltage are required.

Technical data:

●Working temperature: -60℃~+200℃

●Breakdown voltage: 4kv or 7kv

●Flammability: VW-1

●Color: White / black

●Approval: RoHS，UL

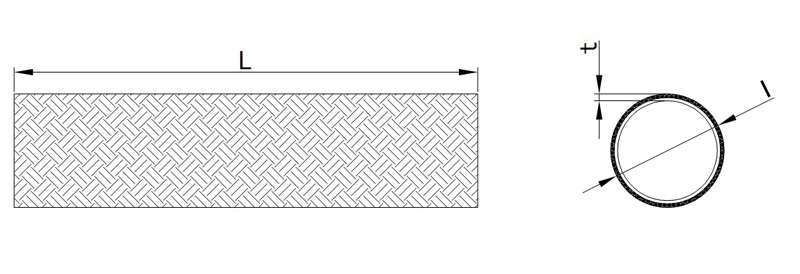

Part No.	I.D.	Tolerance	Wall thickness (t)		Packing (L)
Part No.	I.D.	Tolerance	4kv	7kv	Packing (L)
MQBGJ-1.0	1.0	+0.3/-0.1	0.35±0.05	0.5±0.1	100 m/roll
MQBGJ-1.5	1.5	+0.3/-0.1	0.35±0.05	0.5±0.1	100 m/roll
MQBGJ-2.0	2.0	+0.3/-0.1	0.45±0.05	0.5±0.1	100 m/roll
MQBGJ-2.5	2.5	+0.3/-0.1	0.45±0.05	0.5±0.1	100 m/roll
MQBGJ-3.0	3.0	+0.3/-0.1	0.45±0.05	0.5±0.1	100 m/roll
MQBGJ-3.5	3.5	+0.3/-0.1	0.5±0.05	0.5±0.1	100 m/roll
MQBGJ-4.0	4.0	+0.3/-0.1	0.5±0.05	0.6±0.1	100 m/roll
MQBGJ-4.5	4.5	+0.3/-0.1	0.5±0.05	0.6±0.1	100 m/roll
MQBGJ-5.0	5.0	+0.4/-0.1	0.5±0.05	0.6±0.1	100 m/roll
MQBGJ-5.5	5.5	+0.4/-0.1	0.5±0.05	0.6±0.1	100 m/roll
MQBGJ-6.0	6.0	+0.4/-0.1	0.55±0.05	0.6±0.1	100 m/roll
MQBGJ-7.0	7.0	+0.4/-0.1	0.55±0.05	0.6±0.1	100 m/roll
MQBGJ-8.0	8.0	+0.4/-0.1	0.6±0.05	0.7±0.1	50 m/roll
MQBGJ-9.0	9.0	+0.5/-0.1	0.7±0.05	0.8±0.1	50 m/roll
MQBGJ-10	10	+0.5/-0.1	0.7±0.05	0.8±0.1	50 m/roll
MQBGJ-11	11	+0.5/-0.1	0.7±0.05	0.8±0.1	50 m/roll
MQBGJ-12	12	+0.5/-0.1	0.7±0.05	0.8±0.1	50 m/roll
MQBGJ-13	13	+0.5/-0.1	0.7±0.05	0.8±0.1	50 m/roll
MQBGJ-14	14	+0.5/-0.1	0.7±0.05	0.8±0.1	50 m/roll
MQBGJ-15	15	+0.5/-0.1	0.7±0.05	0.8±0.1	50 m/roll
MQBGJ-16	16	+0.5/-0.1	0.7±0.05	0.8±0.1	50 m/roll

Unit:mm
