JDD-MBQGX this kind of electrical insulation sleeving consists of inner extruded silicone rubber tube being vulcanized and outer non-alkali fiberglass braided, then coated with silicone resin. It possesses good abrasion resistance and high breakdown voltage.
Application:

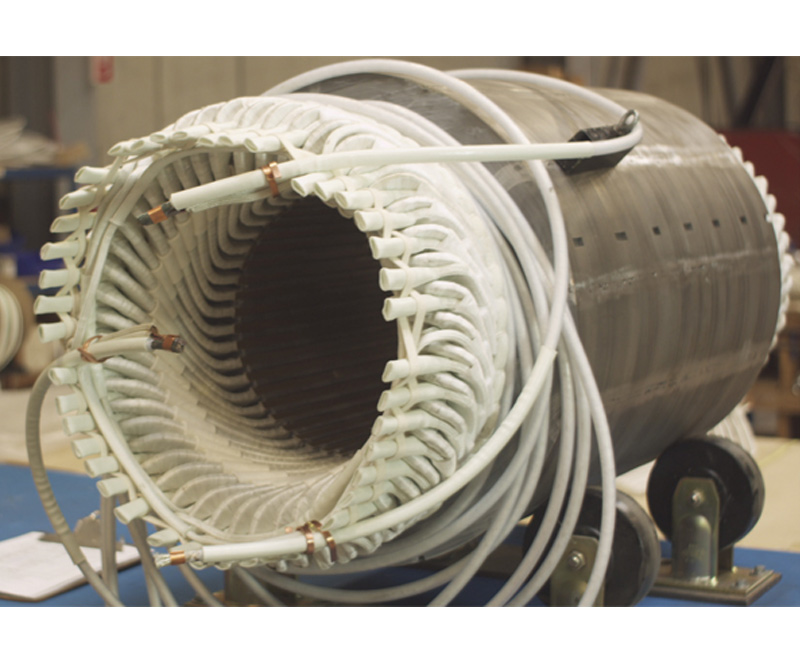

It is commonly used for insulation and protection of household electrical appliances, electro-heat devices, special illuminations etc where high working temperature and high voltage are required.
Technical data:
●Material: Fiberglass fiber
●Coating material: Silicone resin
●Working temperature: -60℃~+200℃
●Breakdown voltage: 7kv
●Flammability: VW-1
●Color: White / black
●Approval: RoHS，UL

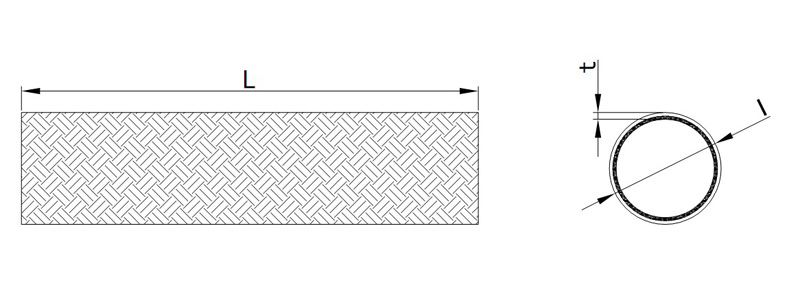

| Part No. | I.D.(I) | Tolerance | Wall thickness | Packing (L) |
| 7kv | ||||
| MBQGX-1.0 | 1 | +0.3/-0.1 | 0.65±0.1 | 100 m/roll |
| MBQGX-1.5 | 1.5 | +0.3/-0.1 | 0.65±0.1 | 100 m/roll |
| MBQGX-2.0 | 2 | +0.3/-0.1 | 0.65±0.1 | 100 m/roll |
| MBQGX-2.5 | 2.5 | +0.3/-0.1 | 0.65±0.1 | 100 m/roll |
| MBQGX-3.0 | 3 | +0.3/-0.1 | 0.65±0.1 | 100 m/roll |
| MBQGX-3.5 | 3.5 | +0.3/-0.1 | 0.65±0.1 | 100 m/roll |
| MBQGX-4.0 | 4 | +0.3/-0.1 | 0.65±0.1 | 100 m/roll |
| MBQGX-4.5 | 4.5 | +0.3/-0.1 | 0.65±0.1 | 100 m/roll |
| MBQGX-5.0 | 5 | +0.3/-0.1 | 0.85±0.1 | 100 m/roll |
| MBQGX-5.5 | 5.5 | +0.3/-0.1 | 0.85±0.1 | 100 m/roll |
| MBQGX-6.0 | 6 | +0.4/-0.1 | 0.85±0.1 | 100 m/roll |
| MBQGX-7.0 | 7 | +0.4/-0.1 | 1.15±0.1 | 100 m/roll |
| MBQGX-8.0 | 8 | +0.4/-0.1 | 1.15±0.1 | 50 m/roll |
| MBQGX-9.0 | 9 | +0.4/-0.1 | 1.15±0.1 | 50 m/roll |
| MBQGX-10 | 10 | +0.4/-0.1 | 1.25±0.1 | 50 m/roll |
| MBQGX-12 | 12 | +0.4/-0.1 | 1.50±0.1 | 50 m/roll |
Unit:mm
