JDD-MDWG heat-treated fiberglass sleeving is a good solution for where has high requirement for high working temperature, but low voltage levels. Its flexibility and expandability make it easy to over irregular shapes. It also provides abrasion and flame resistance.
Application:
It is widely used in heating components, carbon brushes, toasters, coffee-makers etc.
Specifications:
●Operating range: 600℃
●breakdown voltage: 700V
●Flammability: Self-extinguish
●Color: White
●Cutting tool: Scissors
●Approval: RoHS

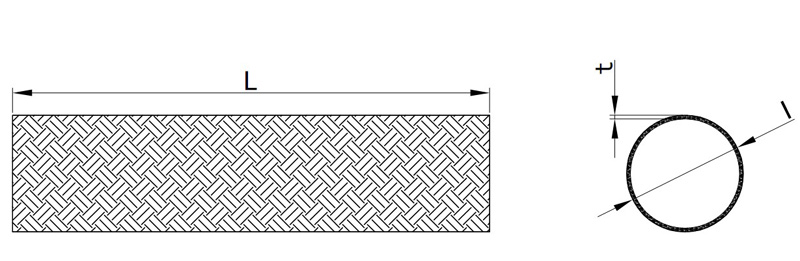

| Part No. | I.D.(I) | Wall thickness(t) | Packing (L) |
| MDWG-003 | 3 | 0.2 | 100 m/roll |
| MDWG-004 | 4 | 0.3 | 100 m/roll |
| MDWG-005 | 5 | 0.3 | 100 m/roll |
| MDWG-006 | 6 | 0.3 | 100 m/roll |
| MDWG-007 | 7 | 0.35 | 100 m/roll |
| MDWG-008 | 8 | 0.35 | 50 m/roll |
| MDWG-010 | 10 | 0.35 | 50 m/roll |
| MDWG-012 | 12 | 0.35 | 50 m/roll |
| MDWG-015 | 15 | 0.43 | 50 m/roll |
| MDWG-018 | 18 | 0.43 | 50 m/roll |
| MDWG-020 | 20 | 0.43 | 50 m/roll |
Unit: mm
