Carbon sleeving consist of exceptional carbon fiber yarn that allows an amazing strength, high thermal resistance and extreme lightweight. our carbon fiber sleeving will forms itself to accommodate uneven or asymmetrical surfaces while providing full radial stability and torsional strength.
Application:
It providing a tough, durable protection for wires, wire harnesses and cable assemblies, tubes and hoses in aerospace, military and other high-tech applications.
Specifications:
●Material: Carbon fiber
●Working temperature: -269℃~+650℃
●Flammability: VW-1
●Color: Natural
●Cutting tool: Scissors
●other feature: Conductive character
●Approval: RoHS

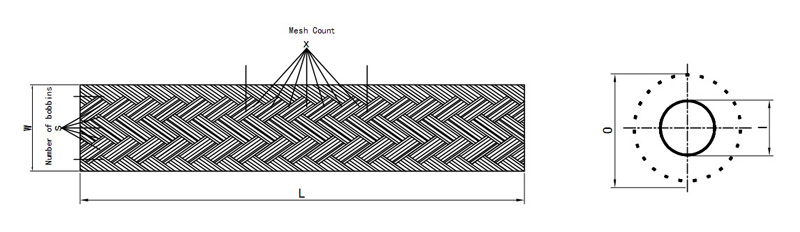

| Part No. | Nominal size (W) | Expandable Range | Packing (L) | |
| Min.(I) | Max.(O) | Standard spool | ||
| CB-003 | 3 | 1 | 4 | 500m |
| CB-006 | 6 | 5 | 8 | 300m |
| CB-008 | 8 | 6 | 10 | 250m |
| CB-010 | 10 | 7 | 13 | 250m |
| CB-012 | 12 | 8 | 16 | 200m |
| CB-015 | 15 | 10 | 20 | 200m |
| CB-020 | 20 | 14 | 26 | 150m |
| CB-025 | 25 | 18 | 33 | 100m |
| CB-030 | 30 | 20 | 39 | 100m |
| CB-040 | 40 | 30 | 52 | 100m |
| CB-050 | 50 | 40 | 65 | 100m |
Unit:mm
