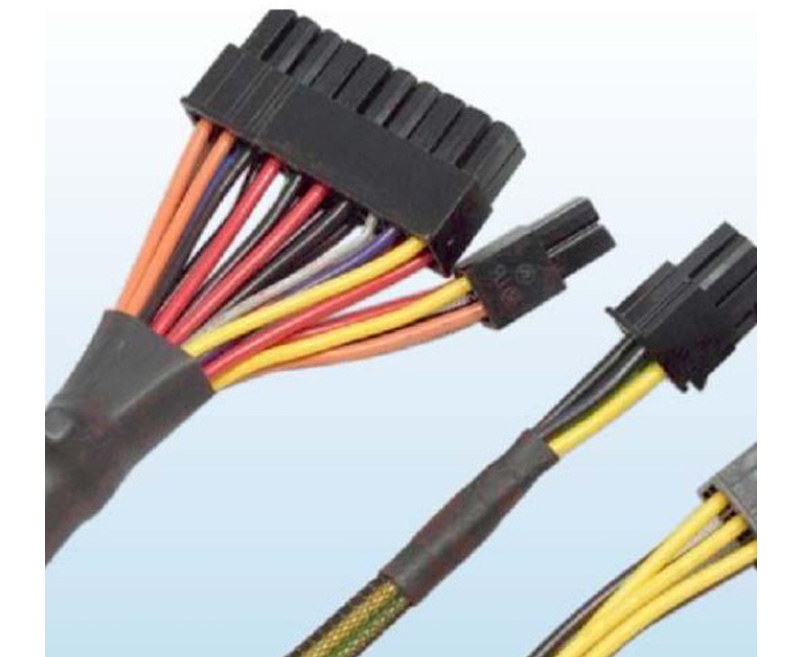

JDD-MCBG thin wall heat-shrinkable Tube is newly developed environment-friendly flame retardant heat shrinkable tube, using modified polymers, through cross-link by electronic accelerator. When heat shrink tubing quickly shrinks, it can molds itself to the specific size and shape of the wire.

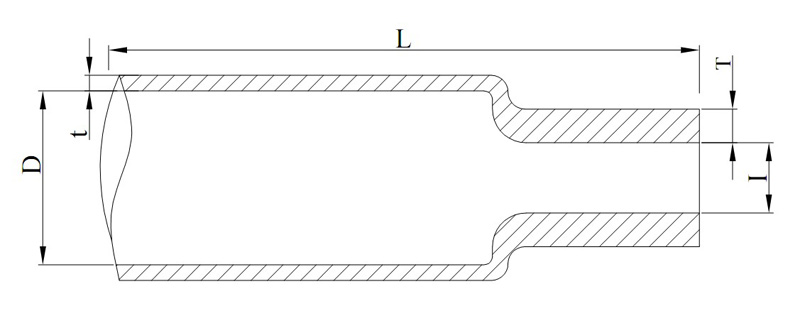

| Part No. | As supplied | After recovery | Packing (L) | ||
| I.D. | Average W.T. | Max. | Average W.T. | ||
| I.D. | |||||
| MCBG-1.0 | 1.5±0.3 | 0.12±0.05 | ≤0.65 | 0.20±0.10 | 200m/roll |
| MCBG-1.5 | 1.9±0.3 | 0.13±0.05 | ≤0.85 | 0.20±0.10 | 200m/roll |
| MCBG-2.0 | 2.4±0.3 | 0.15±0.05 | ≤1.00 | 0.22±0.10 | 200m/roll |
| MCBG-2.5 | 2.9±0.4 | 0.15±0.05 | ≤1.30 | 0.25±0.10 | 200m/roll |
| MCBG-3.0 | 3.4±0.4 | 0.15±0.05 | ≤1.50 | 0.28±0.10 | 200m/roll |
| MCBG-3.5 | 3.9±0.4 | 0.15±0.05 | ≤1.80 | 0.28±0.10 | 200m/roll |
| MCBG-4.0 | 4.4±0.4 | 0.18±0.05 | ≤2.00 | 0.30±0.10 | 200m/roll |
| MCBG-4.5 | 4.9±0.4 | 0.18±0.05 | ≤2.30 | 0.30±0.10 | 200m/roll |
| MCBG-5.0 | 5.5±0.4 | 0.18±0.05 | ≤2.50 | 0.32±0.10 | 100m/roll |
| MCBG-6.0 | 6.5±0.4 | 0.20±0.05 | ≤3.00 | 0.32±0.10 | 100m/roll |
| MCBG-7.0 | 7.5±0.4 | 0.18±0.05 | ≤3.50 | 0.32±0.10 | 100m/roll |
| MCBG-8.0 | 8.5±0.5 | 0.18±0.05 | ≤4.00 | 0.32±0.10 | 100m/roll |
| MCBG-9.0 | 9.5±0.5 | 0.18±0.05 | ≤4.50 | 0.35±0.10 | 100m/roll |
| MCBG-10 | 10.5±0.5 | 0.18±0.05 | ≤5.00 | 0.35±0.10 | 100m/roll |
| MCBG-11 | 11.5±0.5 | 0.18±0.05 | ≤5.50 | 0.40±0.10 | 100m/roll |
| MCBG-12 | 12.5±0.5 | 0.20±0.05 | ≤6.00 | 0.40±0.10 | 100m/roll |
| MCBG-13 | 13.5±0.5 | 0.20±0.05 | ≤6.50 | 0.40±0.10 | 100m/roll |
| MCBG-14 | 14.5±0.5 | 0.20±0.05 | ≤7.00 | 0.40±0.10 | 100m/roll |
| MCBG-15 | 15.5±0.5 | 0.20±0.05 | ≤7.50 | 0.40±0.10 | 100m/roll |
| MCBG-16 | 16.5±0.5 | 0.22±0.05 | ≤8.00 | 0.40±0.10 | 100m/roll |
| MCBG-18 | 18.0±0.5 | 0.22±0.05 | ≤9.00 | 0.45±0.10 | 100m/roll |
| MCBG-20 | 20.0±0.5 | 0.22±0.05 | ≤10.0 | 0.45±0.10 | 100m/roll |
| MCBG-22 | 22.5±0.5 | 0.22±0.05 | ≤11.0 | 0.45±0.10 | 100m/roll |
| MCBG-25 | 25.5±0.5 | 0.22±0.05 | ≤12.5 | 0.45±0.10 | 50 m/roll |
