Description:
JDD-MTLS PTFE heat-shrinkable tube combines of most advantages of common heat shrinkable tube and outstanding chemical properties of fluoropolymer. This kind of heat shrink tubing consist of 100% PTFE material, meanwhile it is the best of the entire fluoropolymer heat shrink tubing family, provide high temperature and chemical resistance with a low friction rating and a very low level of moisture absorption. when the tube totally shrunk, it need high temperature.
Application:
It is widely used in military applications, industrial, biomedical, chemical and analytical sciences and printing industry.
Material: PTFE
Shrink ratio: 1.7:1 or 4:1
Working temperature: -80℃~+260℃
Shrinkage temperature: 320℃~+400℃
Longitudinal shrinkage ≤5%
Hardness: 85
Voltage: 30kv/mm
Tool: heat-gun, oven
Approval: RoHS

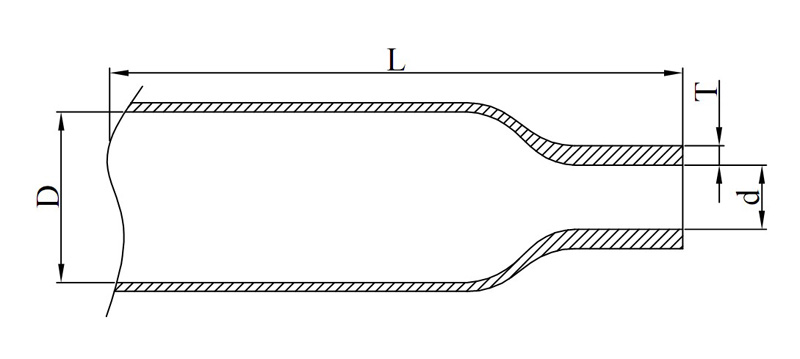

| 1.7:1Datasheet | |||||
| Part No. | As supplied | After recovery | Packing (L) | ||
| I.D. | Wall thickness | I.D. | Wall thickness | ||
| MTLS-0.5 | 0.7±0.2 | 0.15±0.05 | ≤0.40 | 0.25±0.05 | 200 m/roll |
| MTLS-1.0 | 1.0±0.2 | 0.15±0.05 | ≤0.50 | 0.25±0.05 | 200 m/roll |
| MTLS-1.5 | 1.5±0.2 | 0.20±0.05 | ≤0.90 | 0.25±0.05 | 200 m/roll |
| MTLS-2.0 | 2.0±0.2 | 0.20±0.05 | ≤1.30 | 0.30±0.05 | 200 m/roll |
| MTLS-2.5 | 2.5±0.2 | 0.20±0.05 | ≤1.50 | 0.30±0.05 | 200 m/roll |
| MTLS-3.0 | 3.0±0.2 | 0.20±0.05 | ≤1.80 | 0.30±0.05 | 200 m/roll |
| MTLS-3.5 | 3.5±0.2 | 0.20±0.05 | ≤2.0 | 0.30±0.05 | 200 m/roll |
| MTLS-4.0 | 4.0±0.3 | 0.20±0.05 | ≤2.5 | 0.30±0.05 | 200 m/roll |
| MTLS-4.5 | 4.5±0.3 | 0.20±0.05 | ≤2.8 | 0.30±0.05 | 200 m/roll |
| MTLS-5.0 | 5.0±0.3 | 0.20±0.05 | ≤3.0 | 0.30±0.05 | 200 m/roll |
| MTLS-6.0 | 6.0±0.3 | 0.25±0.05 | ≤3.8 | 0.38±0.05 | 100 m/roll |
| MTLS-7.0 | 7.0±0.3 | 0.25±0.05 | ≤4.0 | 0.38±0.05 | 100 m/roll |
| MTLS-8.0 | 8.0±0.3 | 0.25±0.05 | ≤4.8 | 0.38±0.05 | 100 m/roll |
| MTLS-9.0 | 9.0±0.3 | 0.25±0.05 | 5.0 | 0.38±0.05 | 100 m/roll |
| MTLS-10 | 10±0.3 | 0.25±0.05 | ≤6.0 | 0.38±0.05 | 100 m/roll |
| MTLS-12 | 12±0.3 | 0.25±0.05 | ≤7.0 | 0.38±0.05 | 100 m/roll |
| 4:1 Datasheet | |||||
| Part No. | As supplied | After recovery | Packing (L) | ||
| I.D. | Wall thickness | I.D. | Wall thickness | ||
| MTLS-2.0 | 2.0±0.25 | 0.06±0.02 | ≤0.50 | 0.20±0.05 | 100 m/roll |
| MTLS-2.5 | 2.5±0.25 | 0.06±0.02 | ≤0.65 | 0.20±0.05 | 100 m/roll |
| MTLS-3.0 | 3.0±0.25 | 0.06±0.02 | ≤0.75 | 0.20±0.05 | 100 m/roll |
| MTLS-3.5 | 3.5±0.25 | 0.06±0.02 | ≤0.88 | 0.20±0.05 | 100 m/roll |
| MTLS-4.0 | 4.0±0.25 | 0.06±0.02 | ≤1.00 | 0.20±0.05 | 100 m/roll |
| MTLS-4.5 | 4.5±0.25 | 0.06±0.02 | ≤1.15 | 0.20±0.05 | 100 m/roll |
| MTLS-5.0 | 5.0±0.25 | 0.06±0.02 | ≤1.25 | 0.20±0.05 | 100 m/roll |
