JDD-HSS heat shrinkable braided sleeving consists of polyester multifilament and special modified polyolefin monofilament, it will shrink when expose to heat source, this unique woven construction makes it extremely flexible, easy to install on the hoses with irregular shapes. It is suitable used in rough environments, providing excellent abrasion resistance and noise reduction.
Application:
It is widely used to protect the rubber hoses, plastic pipes, wire harnesses from damage, and also resistance the noise and rattle suppression make it suitable in automotive and other industrial fields.
Technical data:
●Material: Polyolefin and polyester
●Working temperature: -40℃~+125℃
●Shrink temperature: 110℃~185℃
●Color: black
●Shrink ratio: 2:1
●Tool: heat gun, oven
●Approval: RoHS, Halogen Free

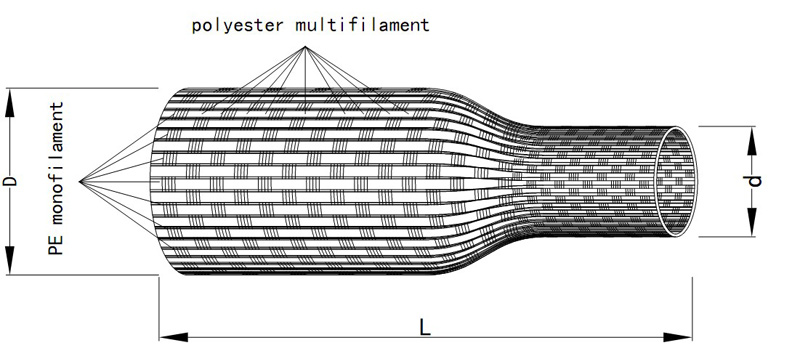

| Part No. | As supplied(D) | After recovery（d） | Packing (L) |
| HSS-010 | 10 | 5 | 400 m/spool |
| HSS-020 | 20 | 10 | 200 m/spool |
| HSS-025 | 25 | 12.5 | 150 m/spool |
| HSS-030 | 30 | 15 | 100 m/spool |
| HSS-034 | 34 | 17 | 100 m/spool |
| HSS-040 | 40 | 20 | 100 m/spool |
| HSS-050 | 50 | 25 | 100 m/spool |
| HSS-060 | 60 | 30 | 50 m/spool |
| HSS-070 | 70 | 35 | 50 m/spool |
| HSS-080 | 80 | 40 | 50 m/spool |
Unit: mm
