JDD-ZSW zipper shielding wrap consists of a highly-flexible tinned copper shielding mesh using an internal shield overlap, a grounding strap and a heavy duty zipper wrap. It is not only providing excellent EMI shielding, but also could anti-noisy, flame-retardant and anti-abrasion.
Application:

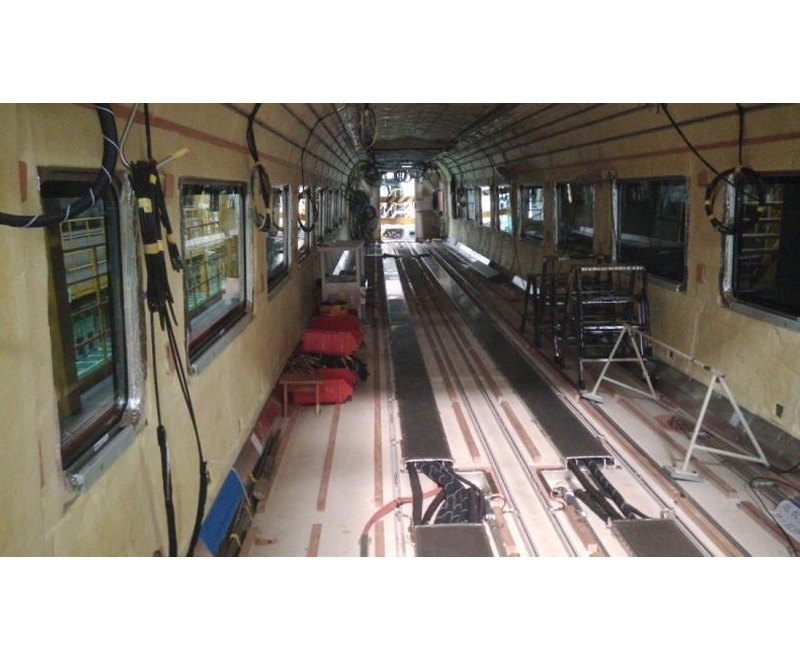

It is widely used for communication system, electronic medical equipments and military equipments.
Technical data:
Wrap Material: Polyester
Zipper Material: Polyamide
Working temperature: -50℃~+150℃
Melting point: 240±10℃
Color: Black
Approval: RoHS, Halogen Free, DIN5510

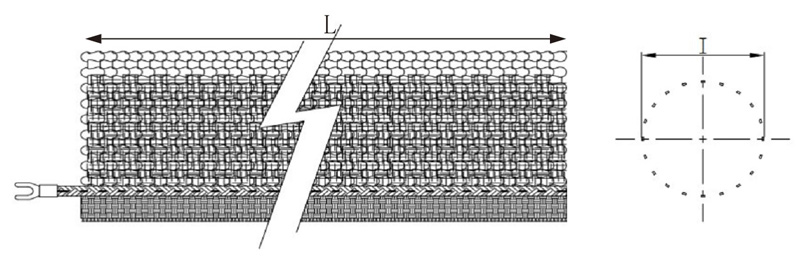

| Part No. | Nominal size (W) | Max. bundle Dia.(I) | Packing (L) |
| ZSW-16 | 16mm | 10-16mm | On request |
| ZSW-20 | 20mm | 17-20mm | |
| ZSW-30 | 30mm | 21-30mm | |
| ZSW-50 | 50mm | 31-50mm |
