JDD-SCK waved self closing wrap is a new type of self-closing wrap, consist of special modified monofilament and multifilament yarns. It has excellent abrasion resistance, noise reduction, meanwhile it is very easy for installation and removal.
Application:
It is widely used on wire harnesses, tubes and hoses providing a tough and durable protection in telecom, railways, automotive sector and equipment.
Technical data:
Material: Polyester
Operating range: -50 °C~+150 °C
Melt point: 240± 10°C
Flammability: UL94-V2
Approved: RoHS, Halogen free
Standard colors: Black
Cutting tool: Hot knife, Scissor
Data sheet:
| Part No. | I.D. | Max. bundle dia. | Packing (L) |
| SCK-005 | 5 | 6 | 100m/roll |
| SCK-008 | 8 | 9 | 100m/roll |
| SCK-010 | 10 | 11 | 100m/roll |
| SCK-013 | 13 | 14 | 50m/roll |
| SCK-016 | 16 | 17 | 25m/roll |
| SCK-019 | 19 | 20 | 25m/roll |
| SCK-025 | 25 | 27 | 25m/roll |
| SCK-029 | 29 | 31 | 25m/roll |
| SCK-032 | 32 | 34 | 25m/roll |
| SCK-038 | 38 | 40 | 25m/roll |
| SCK-050 | 50 | 50 | 25m/roll |
Note:

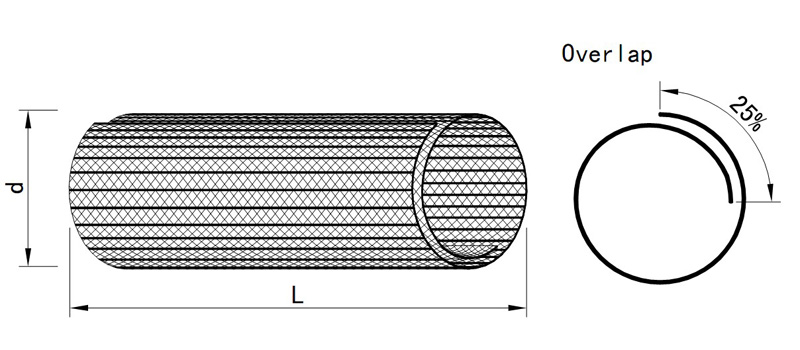

1. I.D. indicates round inner diameter.
2. Special packing, sizes and colors can be supplied upon request.
3. All numerical data are average or typical values, not including customized sizes.
