JDD-SSW Velcro shielding wrap consists of a highly flexible tinned copper shielding mesh using an internal shield overlap, a grounding strap and a heavy duty zipper wrap. It is not only providing excellent EMI shielding, but also could anti-noisy, flame-retardant and anti-abrasion.
Application:
Most commonly used in railways, automotive where the wire harnesses need EMI shielding and durable protection.
Technical data:
●Wrap material: Polyester
●Velcro material: Polyamide
●Working temperature: -50℃~ +150℃
●Melting point: 240±10℃
●Flammability: DIN 5510
●Cutting tool: Scissor

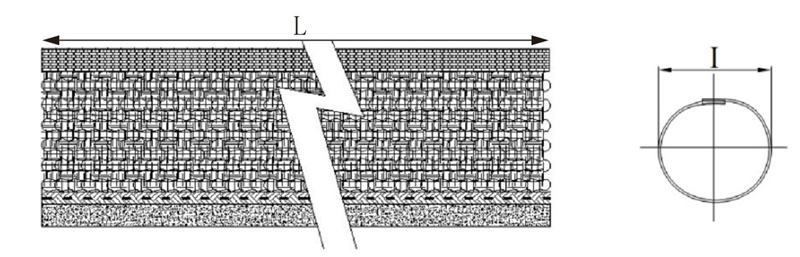

Dimensions:
| Part No. | I.D. | Bundle Dia. | Packing (L) |
| SSW-16 | 16mm | 10mm-16mm | 25 m/roll |
| SSW-20 | 20mm | 17mm-20mm | |
| SSW-30 | 30mm | 21mm-30mm | |
| SSW-50 | 50mm | 31mm-50mm |
Notes:
1. Special packages, sizes and colors can be supplied upon request.
2. All numerical data are average value, not including customized sizes.
