JDD-PVTW Velcro multifilament wrap is a non-expandable sleeving woven from polyester multifilament yarns. With the hook and loop it can be easily wrapped ad closed over the cable bundle. It can be re-open rapidly to permit cables to be added or removed, and breakouts can be made simply by bringing cables out through Velcro.
Application:

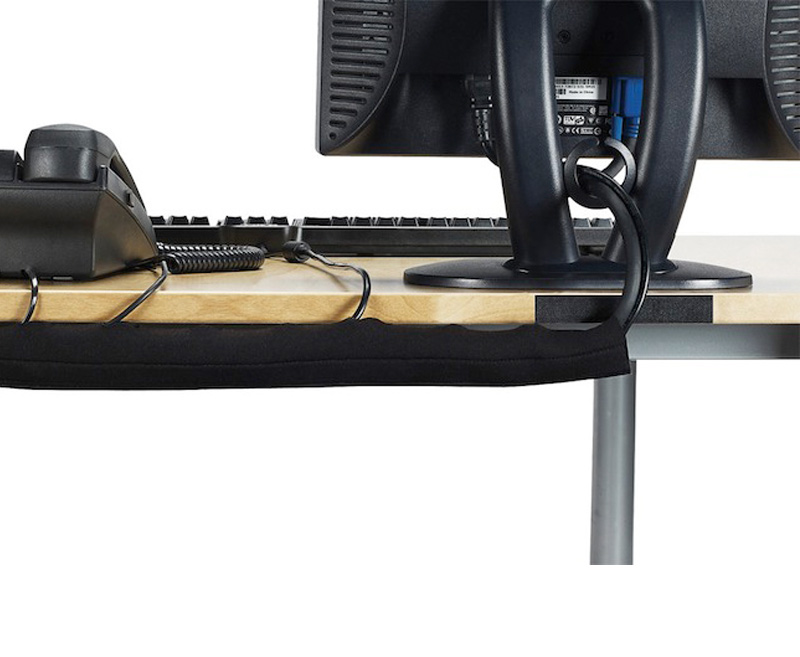

It is widely used in industrial machinery, electrical appliances, audio and video cables.
Technical data:
Wrap material: Polyester
Velcro material: Polyamide
Operating range: -50°C ~ + 150°C
Melt point: 240 ± 10°C
Certificate: RoHS , Halogen Free
Cutting tool: hot knife

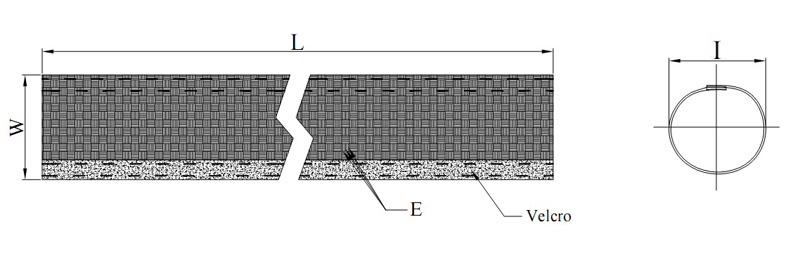

Dimensions:
| Part No. | I.D. (I) | Spread Width(W) | Length (L) |
| PVTW-20 | 20mm | 80mm | 25 m/roll |
| PVTW-25 | 25mm | 95mm | |
| PVTW-30 | 30mm | 115mm | |
| PVTW-35 | 35mm | 130mm | |
| PVTW-40 | 40mm | 146mm | |
| PVTW-45 | 45mm | 162mm | |
| PVTW-50 | 50mm | 178mm |
Notes:
1. Special packing, sizes and colors can be supplied upon request.
2. All the numerical data are average or typical value, not including customized sizes.
