JDD-SCS self-closing wrap is a non-expandable sleeving woven from monofilament (weft) and multifilament (warp) polyester yarns. It is lightweight, cost-effective and highly abrasion resistance, the split open design allows easy install on the cable harness which has been assembled.
Application:

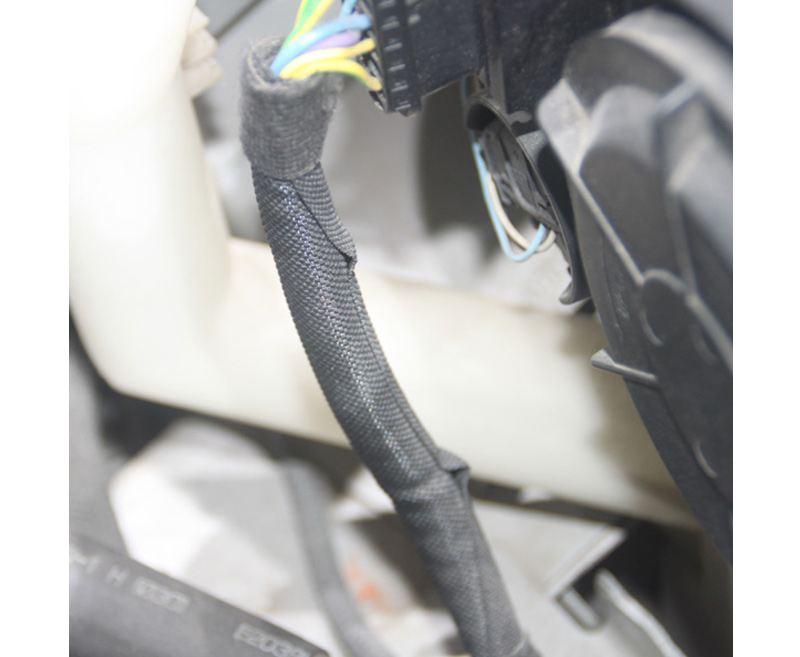

Most commonly used on wire harnesses, cable assemblies, to provide a tough, durable protection in automotive, telecom, automatic equipment, railways and panel boards.
Technical data:
Material: Polyester monofilament and multifilament
Operating range: -50 ~+150 °C
Melt point:240± 10°C
Flammability: DIN5510, BS6853, EN45545 version are available
Approved: RoHS, Halogen free
Standard colours : Black
Cutting tool: Hot knife

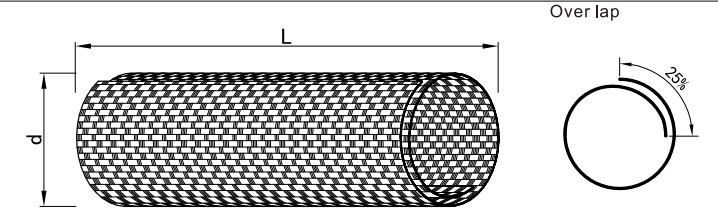

Dimensions:
| Part No. | Nominal Dia. | Max. Bundle Dia. | Packingm/spool | ||||
| SCS-005 | 5.0mm | 6.0mm | 100m | ||||
| SCS-008 | 8.0mm | 9.0mm | 100m | ||||
| SCS-010 | 10.0mm | 11.0mm | 100m | ||||
| SCS-013 | 13.0mm | 14.0 mm | 50m | ||||
| SCS-016 | 16.0mm | 17.0 mm | 25m | ||||
| SCS-019 | 19.0mm | 20.0 mm | 25m | ||||
| SCS-025 | 25.0mm | 27.0 mm | 25m | ||||
| SCS-029 | 29.0mm | 31.0 mm | 25m | ||||
| SCS-032 | 32.0mm | 34.0 mm | 25m | ||||
| SCS-038 | 38.0mm | 40.0 mm | 25m | ||||
| SCS-050 | 50.0mm | 52.0 mm | 25m |
Unit: mm
Note:
1. Special packing, sizes and colors can be supplied upon request.
2. All numerical data are average or typical values, not including customized sizes.
