JDD-SCP self-closing wrap is woven by flammability class UL 94 V0 polyester monofilament. It provides excellent flame resistance, heat dispersion and durable protection. The special open structure provides easy removal when is necessary an inspection or maintance of wire harnesses.
Application:

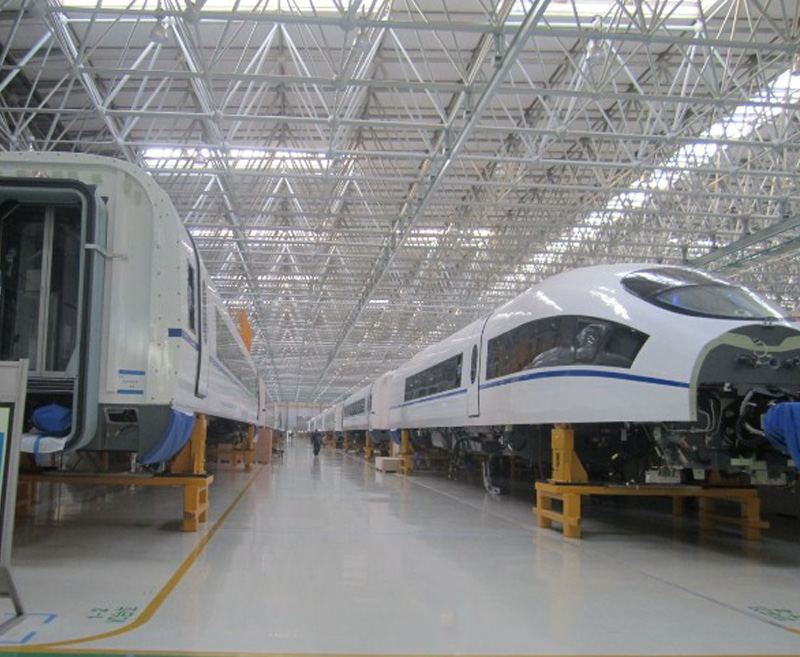

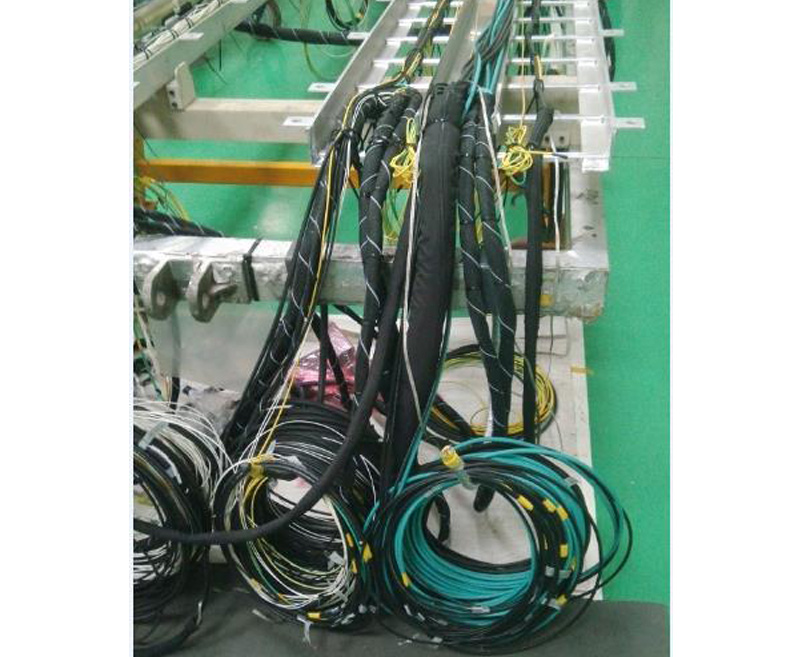

Most commonly used in railways and automotive where the wire harnesses and hoses need high flame retardant, heat dispersion and durable protection.
Technical data:
Material: Polyester
Operating temperature: -50℃~+150℃
Melting point: 240±10℃
Flammability: DIN5510
Color: Black
Certificate: RoHS, Halogen Free
Cutting tool: Hot Knife, scissors
Data sheet:

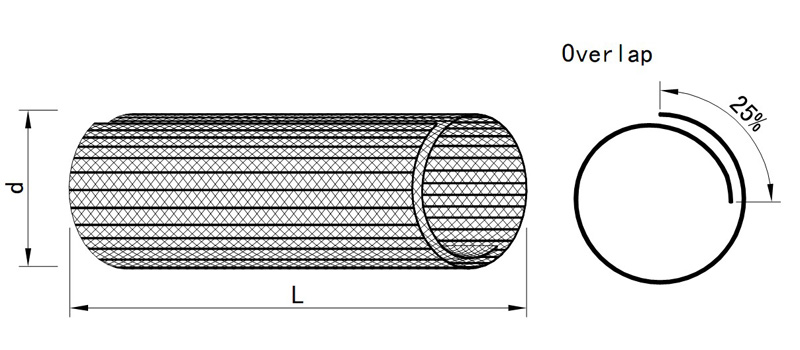

| Part No. | I.D. | Overlap （%） | Max. bundle dia. | Packing (L) |
| SCP-005 | 5 | 75% | 6 | 100m/roll |
| SCP-008 | 8 | 9 | 100m/roll | |
| SCP-013 | 13 | 14 | 100m/roll | |
| SCP-019 | 19 | 20 | 50m/roll | |
| SCP-025 | 25 | 26 | 25m/roll | |
| SCP-029 | 29 | 30 | 25m/roll | |
| SCP-038 | 38 | 40 | 25m/roll |
Unit:mm
Note:
1. Special packing, sizes and colors can be supplied upon request.
2. All numerical data are average or typical values, not including customized sizes
