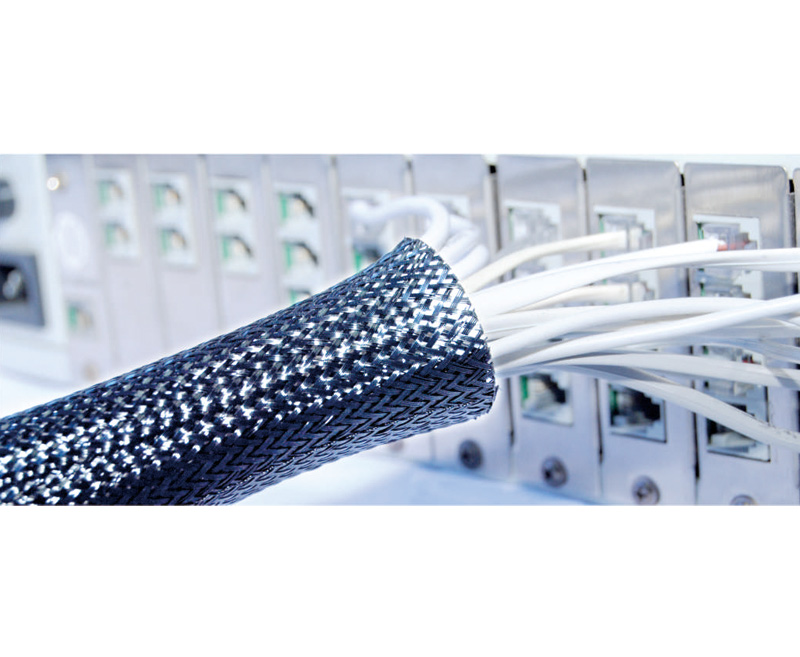

JDD-VCW hook and loop braided wrap can help to create a tidy and well-regulated environment. It can be re-opened rapidly to manage cables to be added or removed, and breakouts can be made simply by bringing cables out through hook and loop.
Application:
Hook and loop braided wrap is widely used for management of A/V cables and power cord in home theater,
computer, TV cabinet and so on.
Technical data:
●Wrap material: Polyester
●Hook and loop material: Polyamide
●Working temperature: -50℃~ +150℃
●Melting point: 240±10℃
●Flammability: UL VW-1
●Color: black, White, grey
●Cutting tool: Hot knife

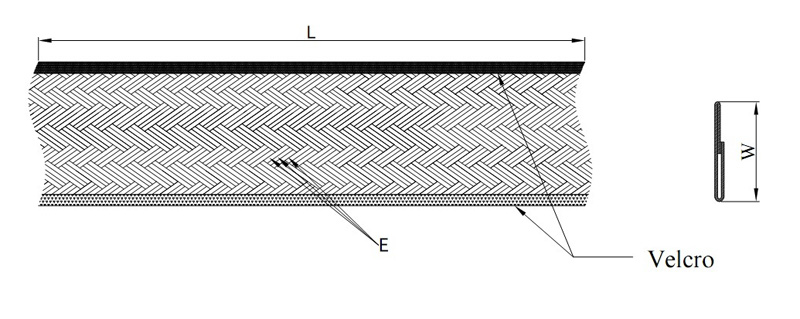

Dimensions:
| Part No. | Nominal size | hook and loop width | Max. bundle dia. | Packing(L) |
| VCW-013 | 13mm | 10 mm | 8 mm | 25m/spool |
| VCW-019 | 19 mm | 10 mm | 12 mm | 25m/spool |
| VCW-032 | 32 mm | 20 mm | 20 mm | 25m/spool |
| VCW-051 | 51 mm | 20 mm | 32 mm | 25m/spool |
| VCW-064 | 64 mm | 20 mm | 40 mm | 25m/spool |
Unit:mm
Notes:
1. Nominal size indicates the flat width after fold.
2. Special packages, sizes and colors can be supplied upon request.
3. All numerical data are average value, not including customized sizes.
