JDD-MLXG spiral protective sleeve provides maximum protection against abrasion and ultraviolet weathering. It can install easily without removing connectors or terminal. Dramatically increase serviceable life for rubber hoses and wires, reduce costly repairs and replacement.
Application

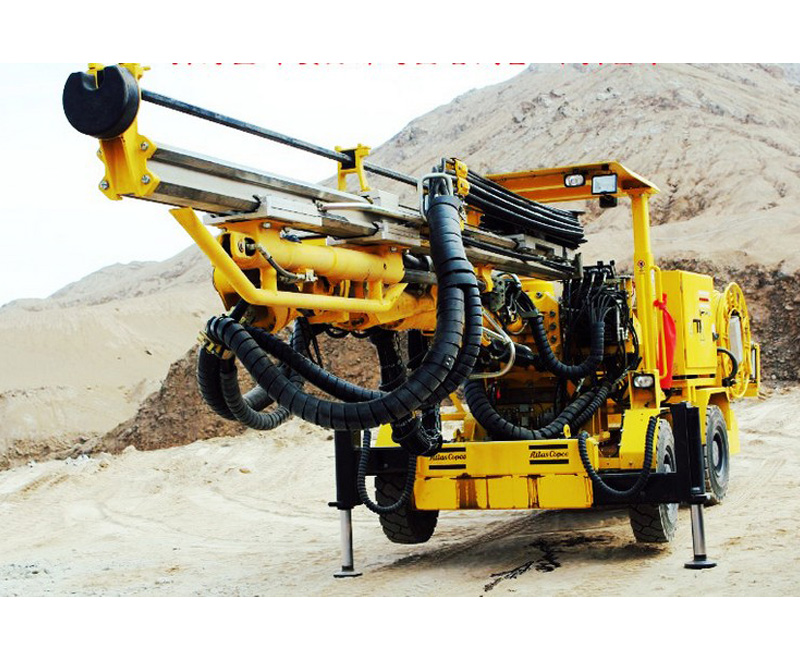

It widely used in the heavy industry to protect the hydraulic hose and the wire away from the resistance damage.
Technical Data:
Material: modified polypropylene
Operating temperature: -40℃~+105℃
Tensile strength: 25Mpa at normal temperature
Standard color: black
Certificate: RoHS
Other feature: impervious to oils, solvents
| Part No. | I.D. | Wall thickness | Width W | Bundle Dia. Range | Packing (L) | |
| (T) | (t) | |||||
| MLXG-008 | 8 | 1.2 | 0.4 | 8 | 8-11 | 2m |
| MLXG-010 | 10 | 1.3 | 0.4 | 10 | 10-13 | |
| MLXG-012 | 12 | 1.5 | 0.5 | 12 | 12-15 | |
| MLXG-016 | 16 | 2 | 0.5 | 15 | 15-18 | |
| MLXG-019 | 19 | 2 | 0.5 | 16 | 18-21 | |
| MLXG-020 | 20 | 2.5 | 0.5 | 18 | 19-25 | |
| MLXG-025 | 25 | 2.5 | 0.7 | 21 | 23-29 | |
| MLXG-028 | 28 | 3 | 0.7 | 22 | 26-32 | |
| MLXG-030 | 30 | 3 | 1 | 22 | 28-35 | |
| MLXG-032 | 32 | 3 | 1 | 23 | 30-37 | |
| MLXG-035 | 35 | 3.5 | 1 | 24 | 32-40 | |
| MLXG-038 | 38 | 3.5 | 1 | 25 | 35-43 | |
| MLXG-042 | 42 | 3.5 | 1 | 25.5 | 39-47 | |
| MLXG-045 | 45 | 3.5 | 1 | 26 | 42-50 | |
| MLXG-050 | 50 | 3.5 | 1.2 | 27 | 46-55 | |
| MLXG-060 | 60 | 4 | 2 | 28 | 55-66 | |
| MLXG-074 | 74 | 4.4 | 2.2 | 29 | 68-70 | |
| MLXG-088 | 88 | 4.9 | 2.4 | 31 | 82-95 | |
| MLXG-100 | 100 | 5.2 | 2.5 | 33 | 94-110 | |
Unit: mm
1. The standard color is black
2. Special packages, sizes and colors can be supplied upon request.
3. All numeric data shows average or typical values, not including customized
sizes.
