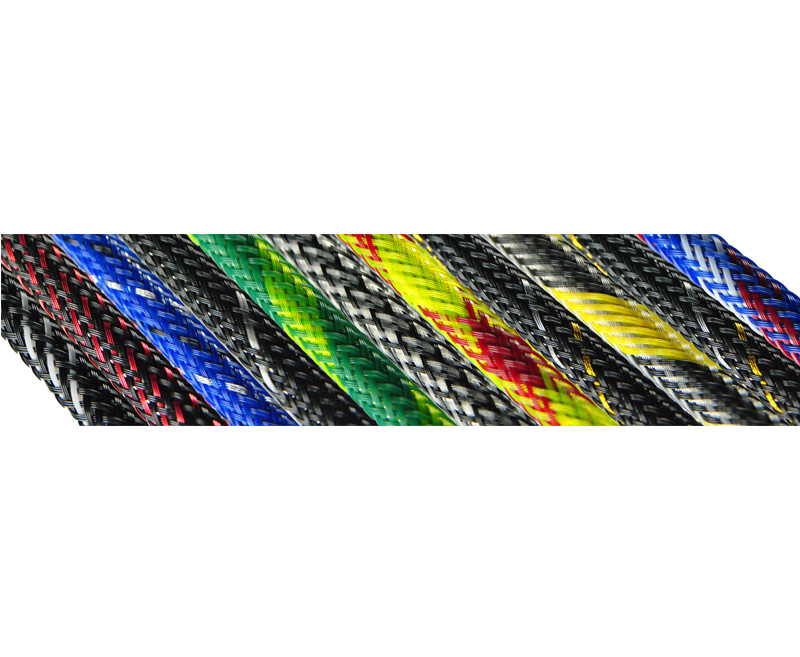

JDD Pattern expandable sleeving not only offers excellent mechanical protection for cables and wire harnesses, but also can provide personalized high-end appearance and identification. The wide range of different braiding patterns and colors could be provided upon requests.
Application:

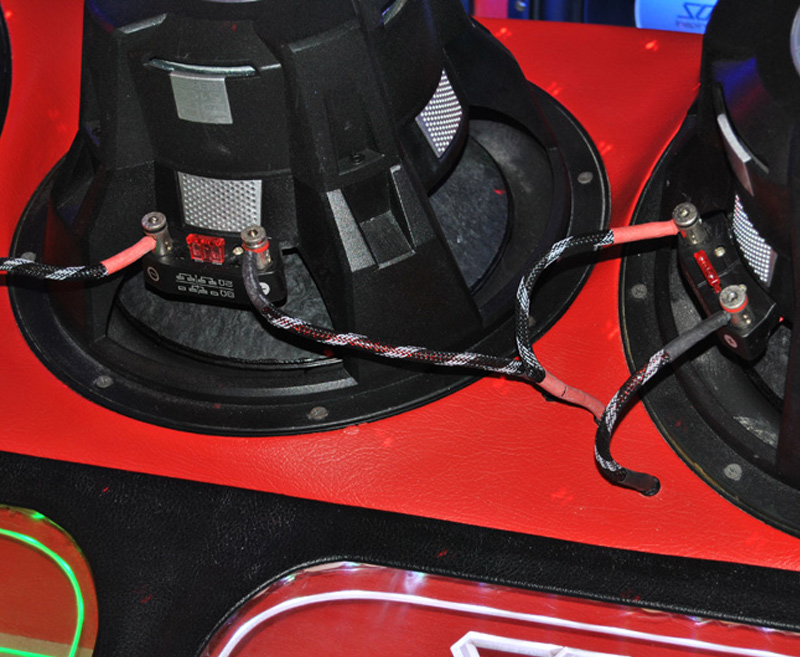

It is typically used for high grade A/V cables, HDMI cables and other wire harness.
Technical data:
Material: Polyester
Operating range: -50°C - +150°C
Melt point: 240±10°C
Flammability: UL VW-1
Standard colors: black, grey
Certificate: UL, RoHS, REACH, Halogen Free
Cutting tool: hot knife
Dimensions:
| Part No. | Nominal size (W) | Expandable Range | Packing (L) | ||
| Inch | mm | Min.(I) mm | Max.(O) mm | Standard spool | |
| FRH-003 | 1/8'' | 3 | 1 | 6 | 1000 m |
| FRH-006 | 1/4'' | 6 | 3 | 9 | 500 m |
| FRH-008 | 5/16'' | 8 | 5 | 16 | 350 m |
| FRH-010 | 3/8'' | 10 | 7 | 19 | 350 m |
| FRH-012 | 1/2'' | 12 | 8 | 24 | 350 m |
| FRH-016 | 5/8'' | 16 | 10 | 27 | 250 m |
| FRH-019 | 3/4" | 19 | 14 | 30 | 200 m |
| FRH-025 | 1" | 25 | 18 | 35 | 200 m |
| FRH-032 | 1-1/4" | 32 | 20 | 50 | 150 m |
| FRH-038 | 1-1/2" | 38 | 30 | 60 | 100 m |
| FRH-045 | 1-3/4" | 45 | 35 | 75 | 100 m |
| FRH-050 | 2" | 50 | 40 | 80 | 100 m |
| FRH-064 | 2-1/2" | 64 | 45 | 105 | 100 m |
| FRH-076 | 3" | 76 | 64 | 120 | 100 m |
Notes:

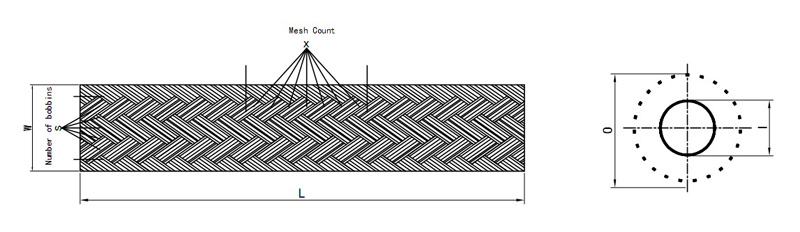

1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:
16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
