JDDTECH multifilament braided sleeving is made of tight woven nylon multifilament yarn. The nylon multifilament is lightweight, extremely flexible and noisy reduction. It provides a very good appearance and abrasion resistance to the wire harness and tubes
Application:
It most commonly be used for bundling and protection of electrical cables and hose in power-supply, communication and automobile sectors.
Technical data:
●Material: Polyamide 6 multifilament
●Working temperature: -50℃~ +125℃
●Melting point: 220±10℃
●Flammability: UL 94V-2
●Color: black
●Cutting tool: Hot knife
●Approval: RoHS

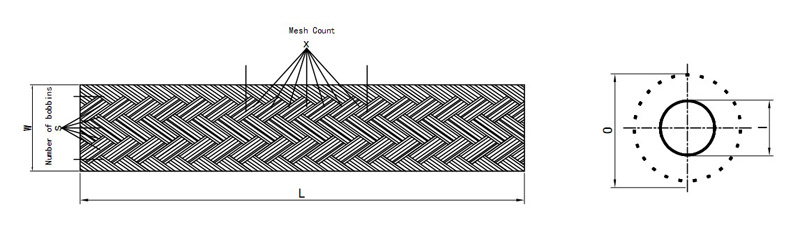

Dimensions:
| Part No. | Nominal size (W) | Expandable Rang | Packing (m/spool) | |
| Min.(I) mm | Max.(O) mm | |||
| PAM-003 | 3 | 2 | 4 | 350m |
| PAM-006 | 6 | 4 | 7 | 350m |
| PAM-008 | 8 | 5 | 9 | 350m |
| PAM-010 | 10 | 6 | 11 | 350m |
| PAM-012 | 12 | 8 | 13 | 300 m |
| PAM-016 | 16 | 10 | 17 | 250 m |
| PAM-019 | 19 | 12 | 20 | 200 m |
| PAM-023 | 23 | 15 | 24 | 200 m |
| PAM-025 | 25 | 16 | 26 | 200 m |
| PAM-032 | 32 | 20 | 33 | 150 m |
| PAM-038 | 38 | 24 | 39 | 100 m |
| PAM-050 | 50 | 32 | 51 | 100 m |
| PAM-063 | 63 | 40 | 64 | 100 m |
Notes:
1. Nominal size indicates the flat width.
2. This sleeving has expandable character, the following sizes are covered by the nearest:
16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
3. Special packing, sizes can be supplied upon request.
4. All numerical data are average or typical values, not including customized sizes.
