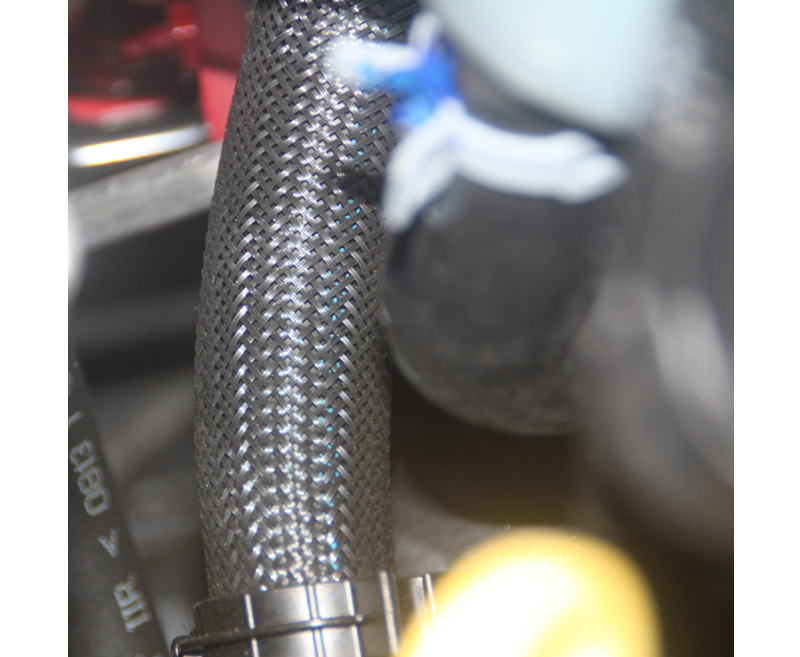

Nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight, highly flexible and it can resists to many chemical agents. It provides smooth, soft, slick surface resisting snags when dragged over the rough surface.
Application:
Most commonly used to protect wire harnesses, cable assemblies, air conditioned pipes, fluid pipes in automotive, aerospace and military applications.
Technical data:
●Material: Polyamide 6.6
●Working temperature: -60℃~ +160℃
●Melting point: 256 ± 5℃
●Color: Black and grey
●Cutting tool: Hot knife
●Approval: RoHS, REACH, Halogen Free

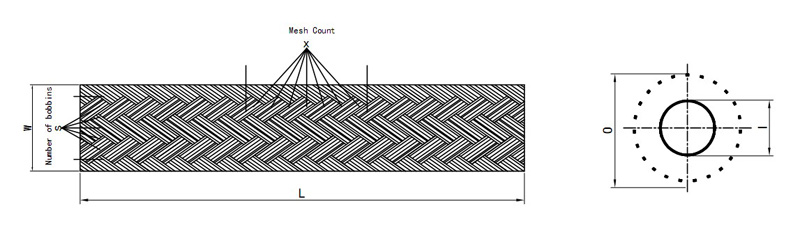

Dimensions:
| Part No. | Nominal size (W) | Expandable Range | Packing (L) | ||
| Inch | mm | Min.(I) mm | Max.(O) mm | Standard spool | |
| PA-003 | 1/8'' | 3 | 1 | 6 | 1000 m |
| PA-006 | 1/4'' | 6 | 3 | 9 | 500 m |
| PA-008 | 5/16'' | 8 | 5 | 16 | 350 m |
| PA-010 | 3/8'' | 10 | 7 | 19 | 350 m |
| PA-012 | 1/2'' | 12 | 8 | 24 | 350 m |
| PA-016 | 5/8'' | 16 | 10 | 27 | 250 m |
| PA-019 | 3/4" | 19 | 14 | 30 | 200 m |
| PA-025 | 1" | 25 | 18 | 35 | 200 m |
| PA-032 | 1-1/4" | 32 | 20 | 50 | 150 m |
| PA-038 | 1-1/2" | 38 | 30 | 60 | 100 m |
| PA-045 | 1-3/4" | 45 | 35 | 75 | 100 m |
| PA-050 | 2" | 50 | 40 | 80 | 100 m |
| PA-064 | 2-1/2" | 64 | 45 | 105 | 100 m |
| PA-076 | 3" | 76 | 64 | 120 | 100 m |
Notes:
1. Nominal size indicates the flat width.
2. This sleeving has expandable character, the following sizes are covered by the nearest:
16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
3. Special packing, sizes, and colors can be supplied upon request.
4. All numerical data are average or typical values, not including customized sizes.
