JDD-MCR is made of polyester with dazzling metallic look, it provides full coverage with no transparent elements in the braided construction and reflect light, smooth, flexible and continuous metallic shine.
Application:
It commonly used over the cables, wires, tubes and nonmetallic objects to provide a durable protection and metallic appearance in motorbike, racing car etc.
Technical data:
●Material: Polyester
●Working temperature: -50℃~+150℃
●Melting point: 240±10℃
●Color: Silver
●Cutting tool: Hot knife
●Approval: RoHS

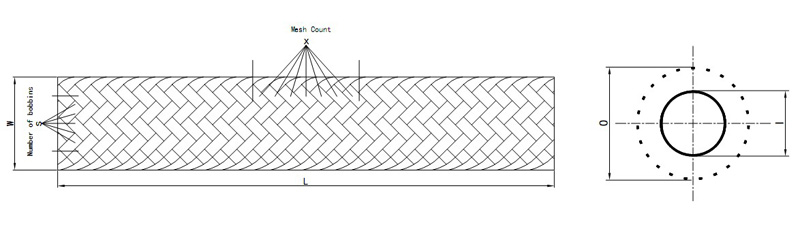

| Part No. | Nominal size (W) | Expandable Rang | Packing (L) | |
| Min.(I) | Max.(O) | |||
| MCR-006 | 6mm | 5mm | 8mm | 300 m/spool |
| MCR-008 | 8mm | 7mm | 10mm | 300 m/spool |
| MCR-012 | 12mm | 10mm | 16mm | 300 m/spool |
| MCR-019 | 19mm | 18mm | 26mm | 100 m/spool |
| MCR-032 | 32mm | 31mm | 42mm | 100 m/spool |
| MCR-038 | 38mm | 37mm | 49mm | 100 m/spool |
Unit: mm
1. Nominal size indicates the flat width.
2. Special packing, sizes, and colors can be supplied upon request.
3. All the numerical data are average or typical values, not including customized sizes.
